What You Should Know About Using Arched Lintels
Photos of Brick Arch Collapse Because Arched Lintels Were Not Used
Download Arched Lintel Flyer    Download NUCOR Carbon and Alloy Steels MSDS

Arched lintels and plates are used to support the masonry above windows, entries, doors, porte-cocheres and more. AHI makes custom steel, arched lintels that are small or large, narrow or wide, and help prevent hazardous brick cracks. Installing brick arches without an arched lintels can be dangerous and cause a failure or collapse. Arched lintels are sturdy, economical and available with shop primer coating or hot-dipped galvanized.

Download Measure Forms:
Basic Arch Plate   Arch Plate with Straps  Bay Window Arch

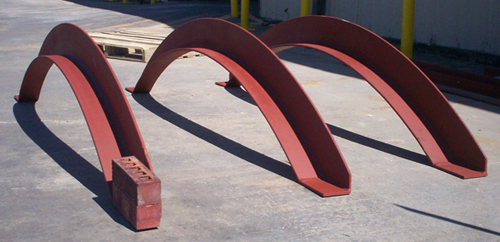

Typical arched lintel for window	6" x 4" x 3/8" arched lintels shown

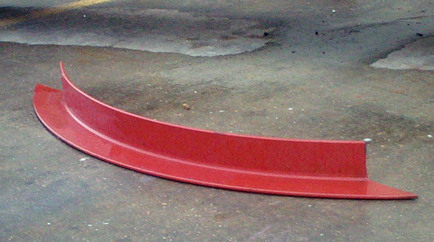

Standard bay window lintel	Typical bay window
Heavy-duty arched plates suitable for high-strength fastening-to-framing orrosion-resistant metal primer	Standard-duty arched plates hot-dipped galvanized

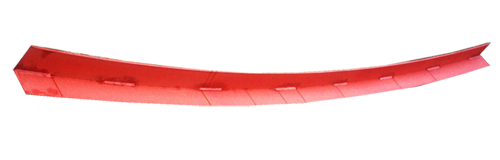

Ski slope arched lintel. (Typically bolted to framing to support masonry over framed areas)	Arched plate with straps

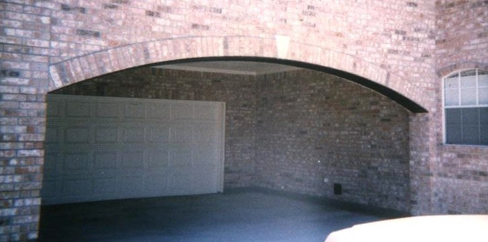

Consquences of not using a fully installed arched lintel	Successful, completed installation
